Display
Panel type: ADS
Display diagonal: 33 cm (13")
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
HD type: Full HD
Feature: Touchscreen
Feature: Multi-touch
Response time: 30 ms
Contrast ratio (typical): 600:1
Contrast ratio (dynamic): 10000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.153 x 0.153 mm
Horizontal scan range: 30 - 81 kHz
Vertical scan range: 48 - 75 Hz
Haze rate: 25%
Pixel frequency (max): 594 MHz
Colour gamut: 45%
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.4
HDMI input ports quantity: 1
Feature: USB port
USB ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: DC-in jack
Design
Product design: Interactive flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel width (bottom): 1.31 cm
Bezel width (side): 1.31 cm
Bezel width (top): 1.31 cm
Bezel colour: Charcoal Black
Performance
Purpose: Universal
Operating hours (hours/days): 16/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 27.5 W
Power consumption (sleep): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen 4.0
Weight & dimensions
Display width: 322 mm
Display depth: 29.8 mm
Display height: 193.5 mm
Display weight: 1.1 kg
Packaging data
Package width: 376 mm
Package depth: 248 mm
Package height: 132 mm
Package weight: 2 kg
Operational conditions
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%
Certificates
Certification: Class B60950-1, 62368-160950-1, 62368-1
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Flash memory: 8000 MB
RS-232 input ports: 1
RJ-45 input ports: 1

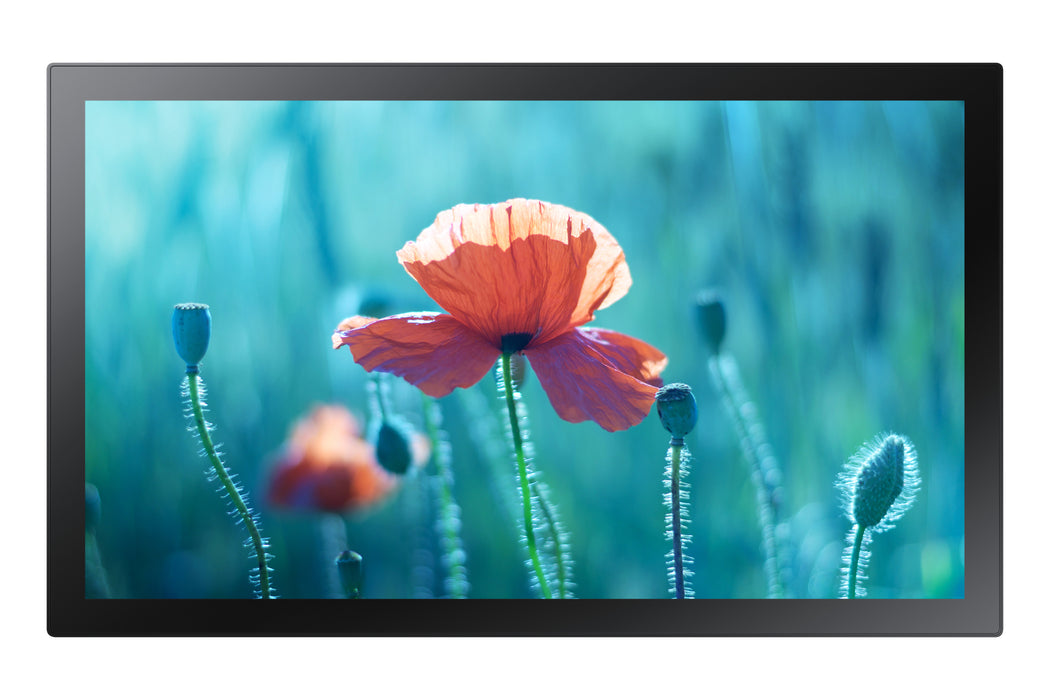

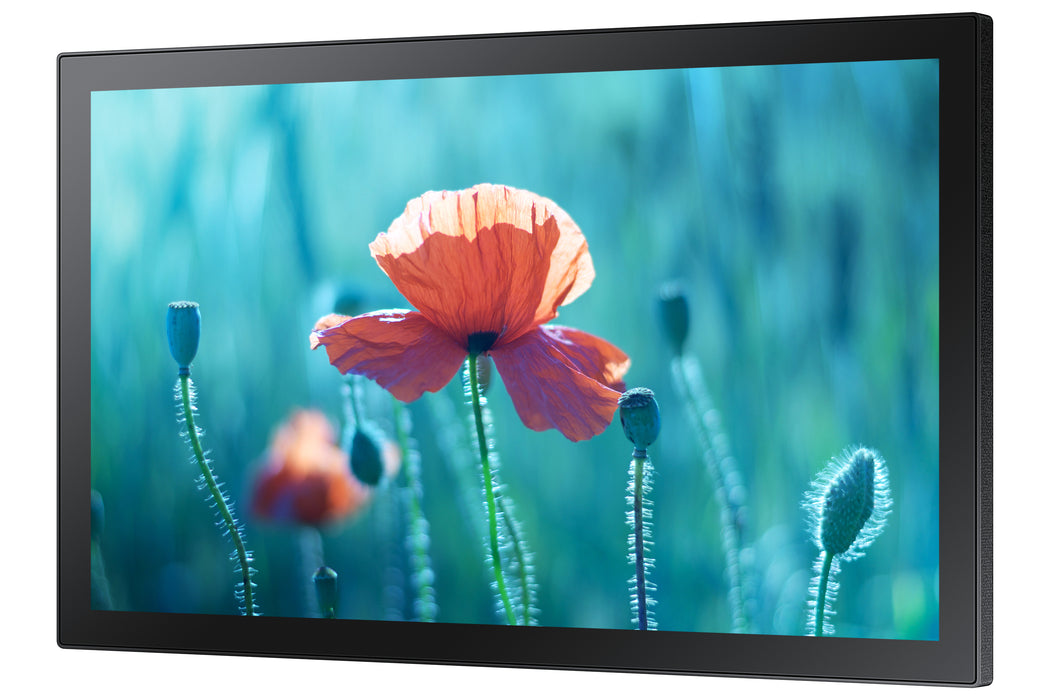

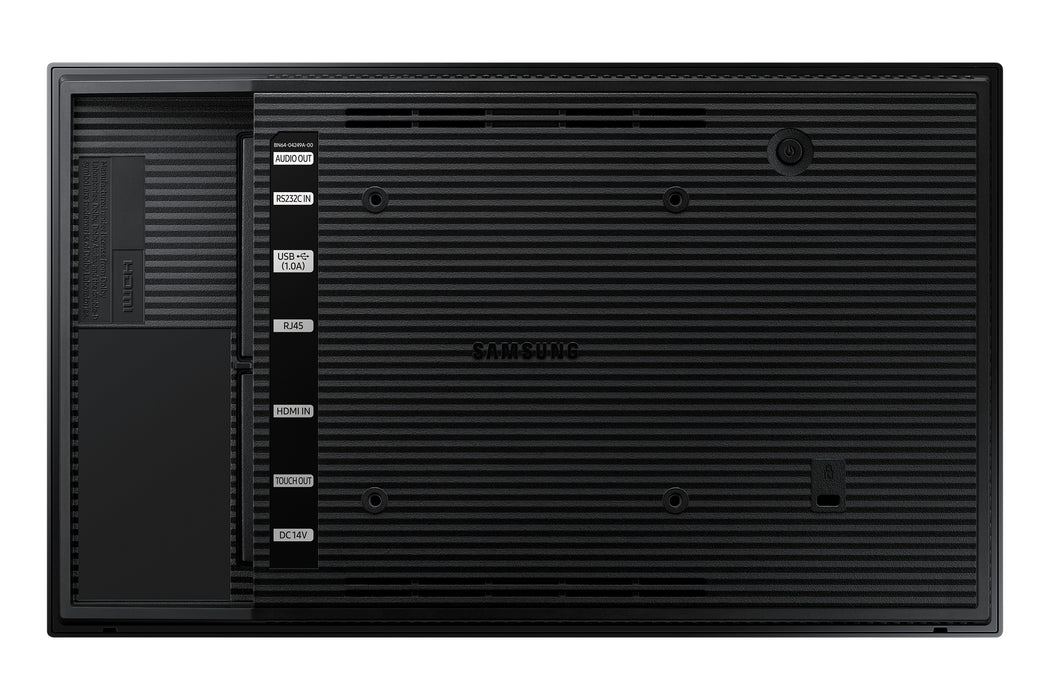

Samsung QB13R-TM. Product design: Interactive flat panel. Display diagonal: 33 cm (13"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 4.0. Product colour: Black
SAMSUNG
MBR CODE - LH13QBRTMGCXEN
EAN - 8806094965476
| Panel type | ADS |
| Display diagonal | 33 cm (13") |
| Display technology | LED |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Multi-touch | Yes |
| Response time | 30 ms |
| Contrast ratio (typical) | 600:1 |
| Contrast ratio (dynamic) | 10000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.153 x 0.153 mm |
| Horizontal scan range | 30 - 81 kHz |
| Vertical scan range | 48 - 75 Hz |
| Haze rate | 25% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 45% |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDMI input ports quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| DC-in jack | Yes |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Bezel width (bottom) | 1.31 cm |
| Bezel width (side) | 1.31 cm |
| Bezel width (top) | 1.31 cm |
| Bezel colour | Charcoal Black |
| Purpose | Universal |
| Operating hours (hours/days) | 16/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power consumption (typical) | 27.5 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Operating system installed | Tizen 4.0 |
| Display width | 322 mm |
| Display depth | 29.8 mm |
| Display height | 193.5 mm |
| Display weight | 1.1 kg |
| Package width | 376 mm |
| Package depth | 248 mm |
| Package height | 132 mm |
| Package weight | 2 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certification | Class B 60950-1, 62368-160950-1, 62368-1 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Audio out (mini jack) | 1 |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RJ-45 input ports | 1 |
Samsung QB13R-TM Interactive flat panel 33 cm (13") LED Wi-Fi 500 cd/m² Full HD Black Touchscreen Built-in processor Tizen 4.0 16/7
